| Tow bar caravan/trailer wiring | |||||||

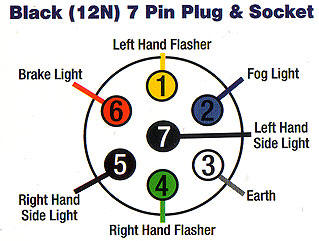

| 13 pin Europlug | 12N connector (black) |
|
|||||
| Pin | Pin |
Function |
|||||
| 1 | Yellow | 1 | Yellow | Left indicator | |||
| 2 | Blue | 2 | Blue | Rear fog lamp | |||
| 3 | White | 3 | White | Common for lighting circuits | |||
| 4 | Green | 4 | Green | Right indicator | |||
| 5 | Brown | 5 | Brown | Right tail light | |||
| 6 | Red | 6 | Red | Brake lights | |||
| 7 | Black | 7 | Black | Left tail light and number plate | |||
| 12S connector (grey) |
![]() |
||||||
| 8 | Pink | 1 | Yellow | Reversing light | |||
| 9 | Orange | 4 | Green | Permanent 12V | |||
| 10 | Grey | 6 | Red | Switched 12V / Refrigerator | |||
| 11 | White/black | 7 | Black | Common for refrigerator | |||
| 12 | White/blue | 5 | Brown | Reverse sensor | |||
| 13 | White/red | 3 | White | Common for permanent 12V | |||
| 2 | Blue | Battery charging supply | |||||
